Case study · Cloudstudio internal
Every project in production, every repository and every Stripe account, as a colony on Mars you can walk around. When something falls over, you see it from the other side of the valley.
( The brief )
Ten sites in production, fourteen public repositories, a Stripe account, certificates expiring on their own schedule. All of it visible, in theory, across five browser tabs nobody opened until something broke.
The problem was never the data — it was that a table of green ticks carries no weight. You skim it. So HQ throws the table away and gives the estate a place: a valley on Mars where every single thing you own stands up as a building, at the size its numbers earn. You don't check on it. You look out of the window.
If there's no data behind a building, the building doesn't exist.

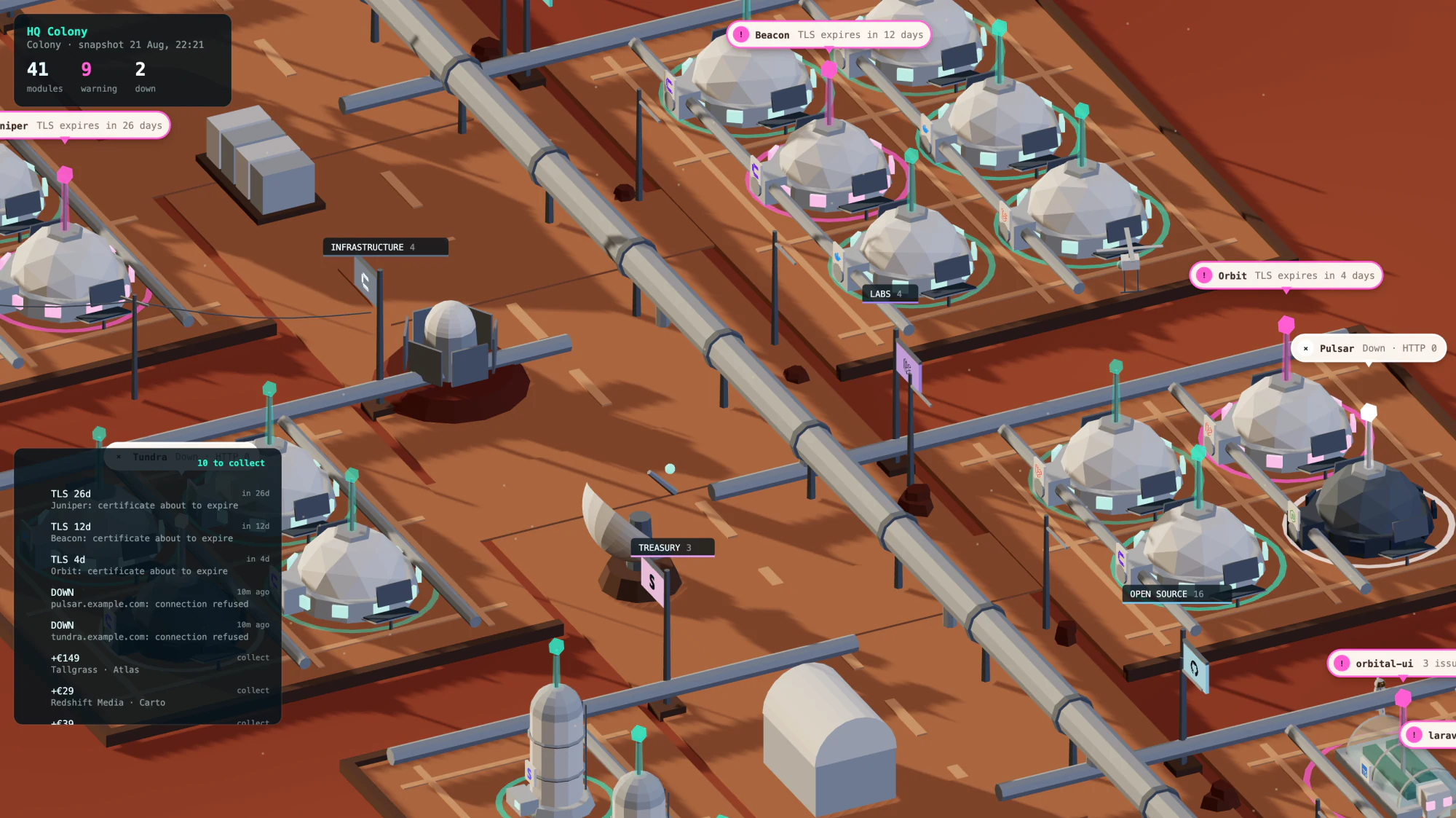

The rule that makes the whole thing work, and the one that was hardest to keep. No building is ever invented to fill a gap. A habitat dome is a project answering HTTP right now; a greenhouse is a repository; an ice extractor is a Stripe account. Few things means a small colony — and it grows on its own as you ship, without anyone laying out a map. The only volumes with nothing behind them are landscape, and the world says so out loud: matte rust, never data.
A state has to land before you read a word of it. Cyan holds steady when a thing answers. Magenta pulses when something wants attention — a certificate with nineteen days left, four pull requests waiting. A downed service strobes white and its hull goes dark, and it never dims to nothing, because a module that blinks to black disappears at exactly the moment you need it most.

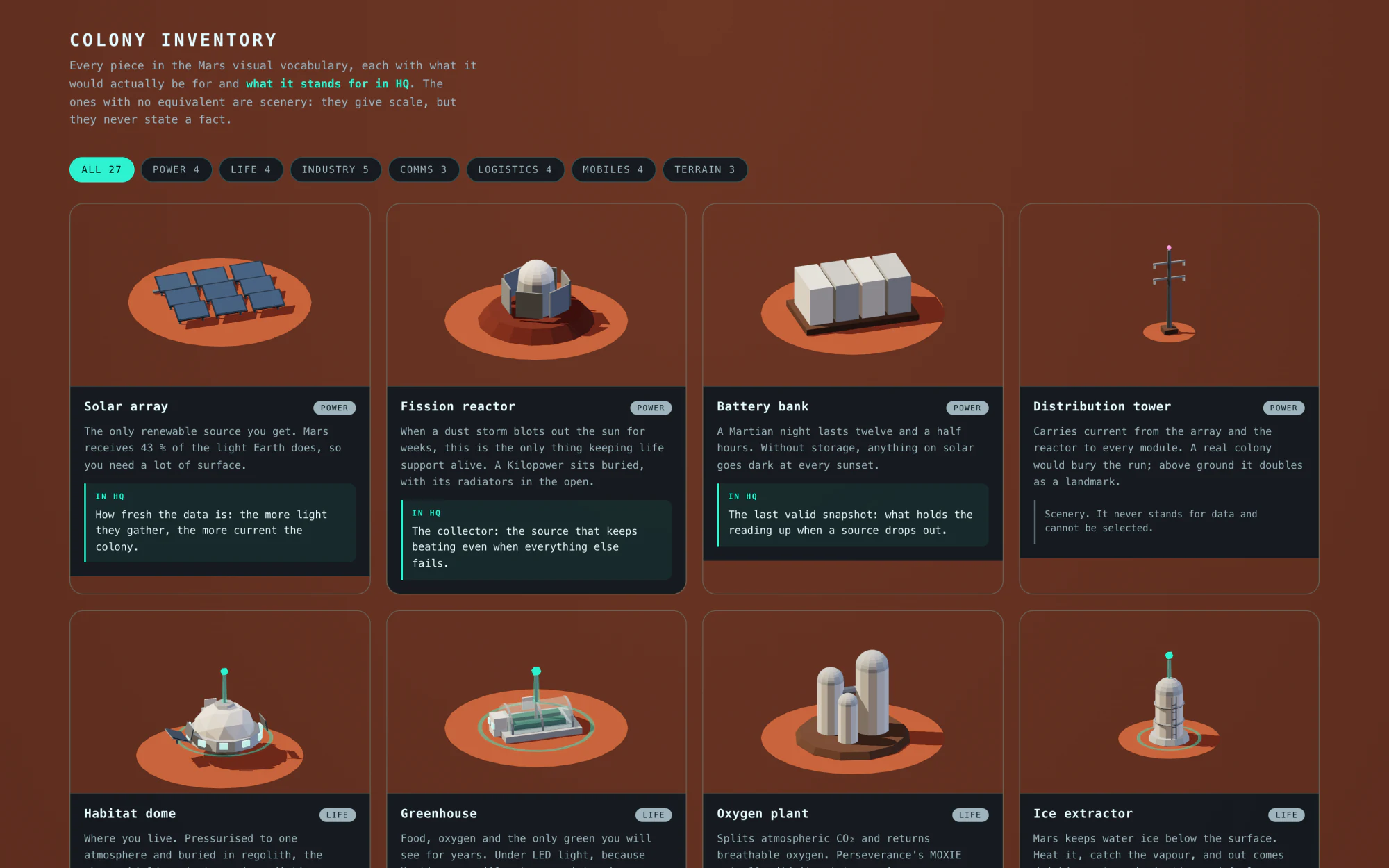

Twenty-seven pieces, each with what it would actually be for on Mars and what it stands for here. Writing that list first is what stopped the world drifting into decoration: three pieces are still not placed, and they're documented as unplaced, because the data behind them doesn't exist. A refinery that "turns HTTP responses into state" is a lovely metaphor and a fact nobody can measure.

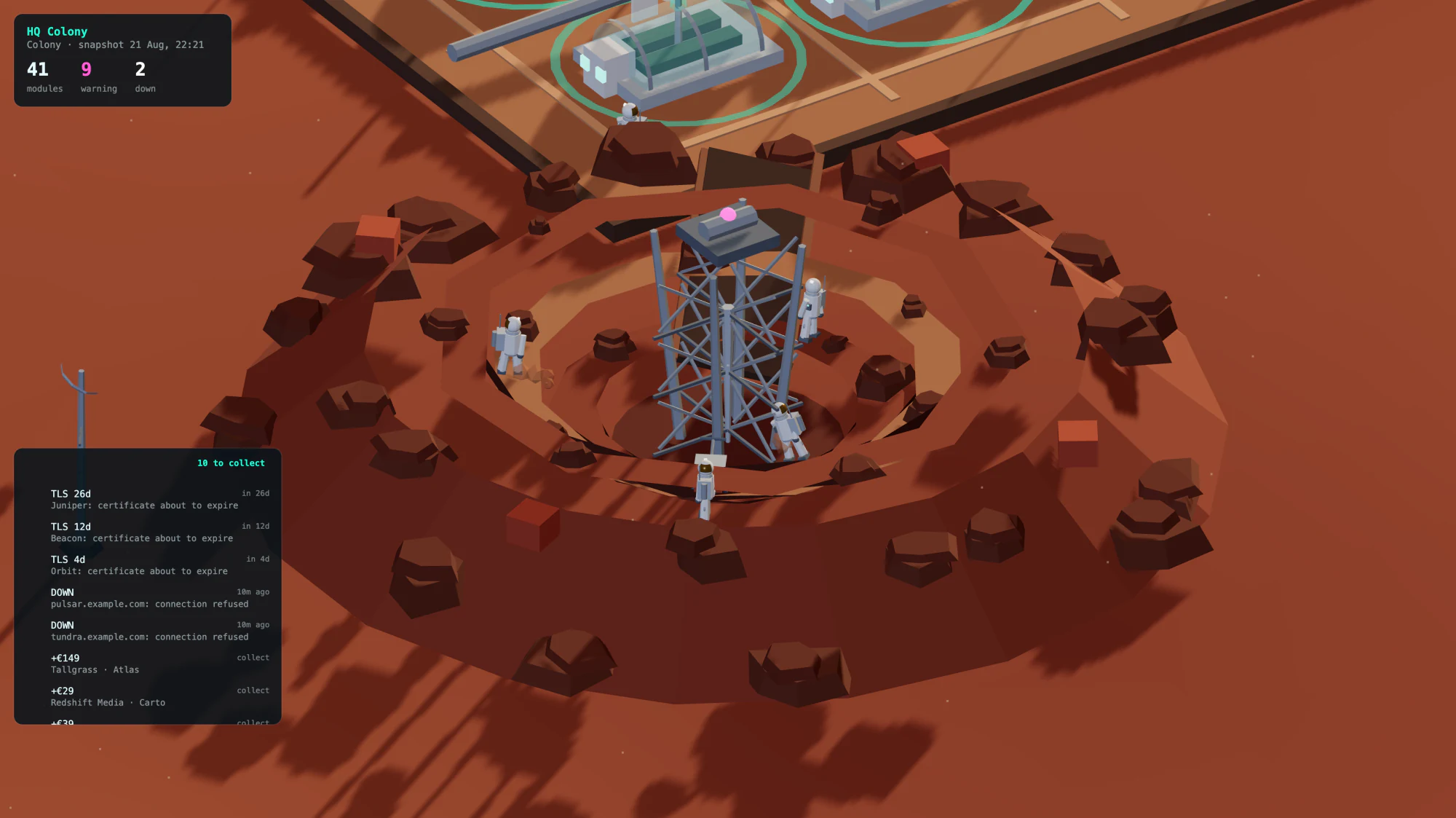

An open-pit quarry, out past the last plot, where the crew cuts the raw material the colony is built from: the commits still sitting on the machine. Three benches, a haul road with kerbs, a braced drill rig whose bit turns and sinks. The crew has jobs, not one animation — two cut the face, one shovels, one pushes a cart up the road and stops at each end to load and tip. Dust comes off on the frame the pick lands, not before.

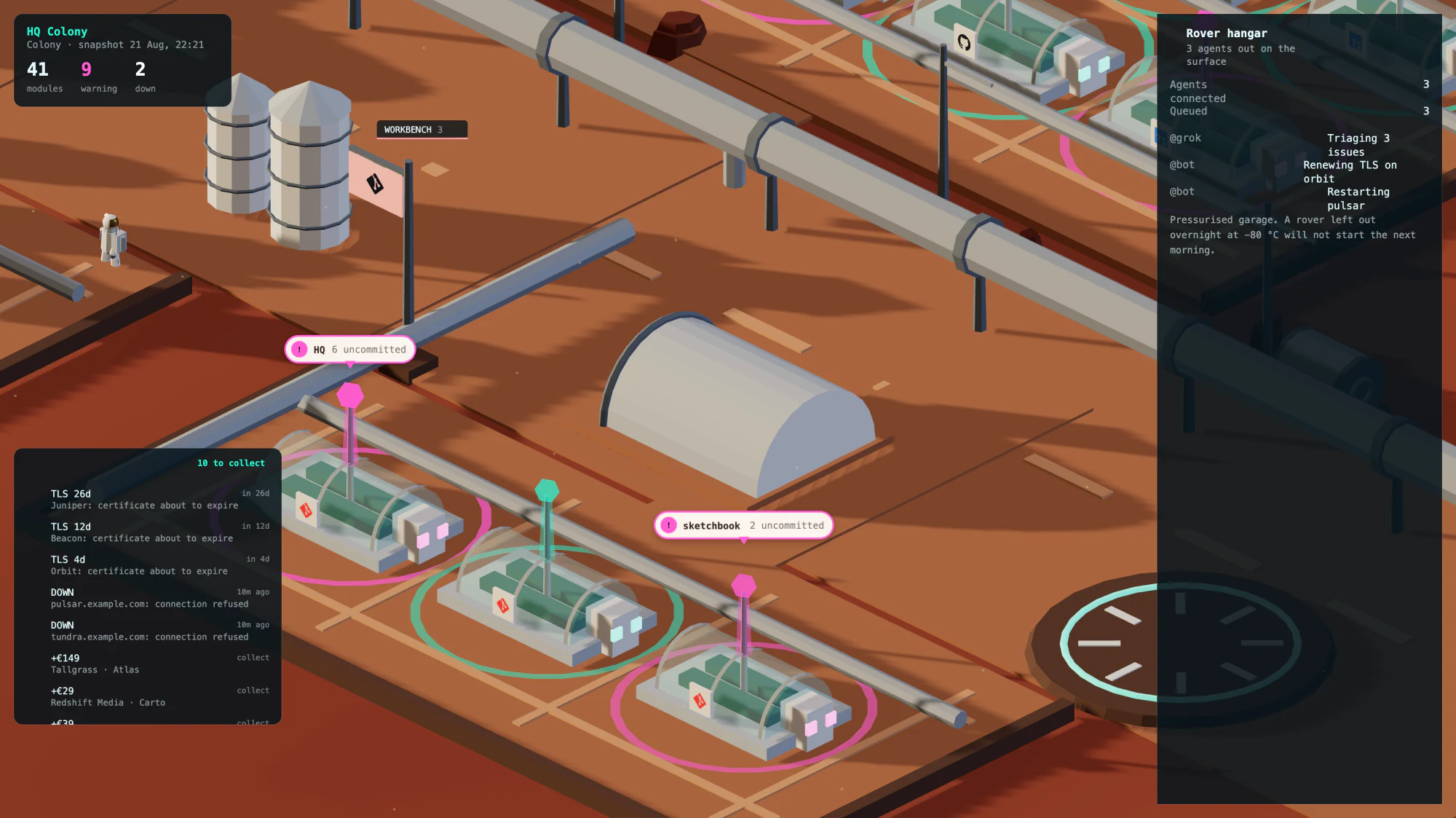

A pressurised hangar on the civic avenue, and the only building that reports on the work itself rather than on a thing you own: who is out on the surface and what they're doing. When there's nothing wired in, it says so — the panel reads "pending: the MCP that wires the agents in" instead of pretending. A world that lies once about being busy stops being worth looking at.

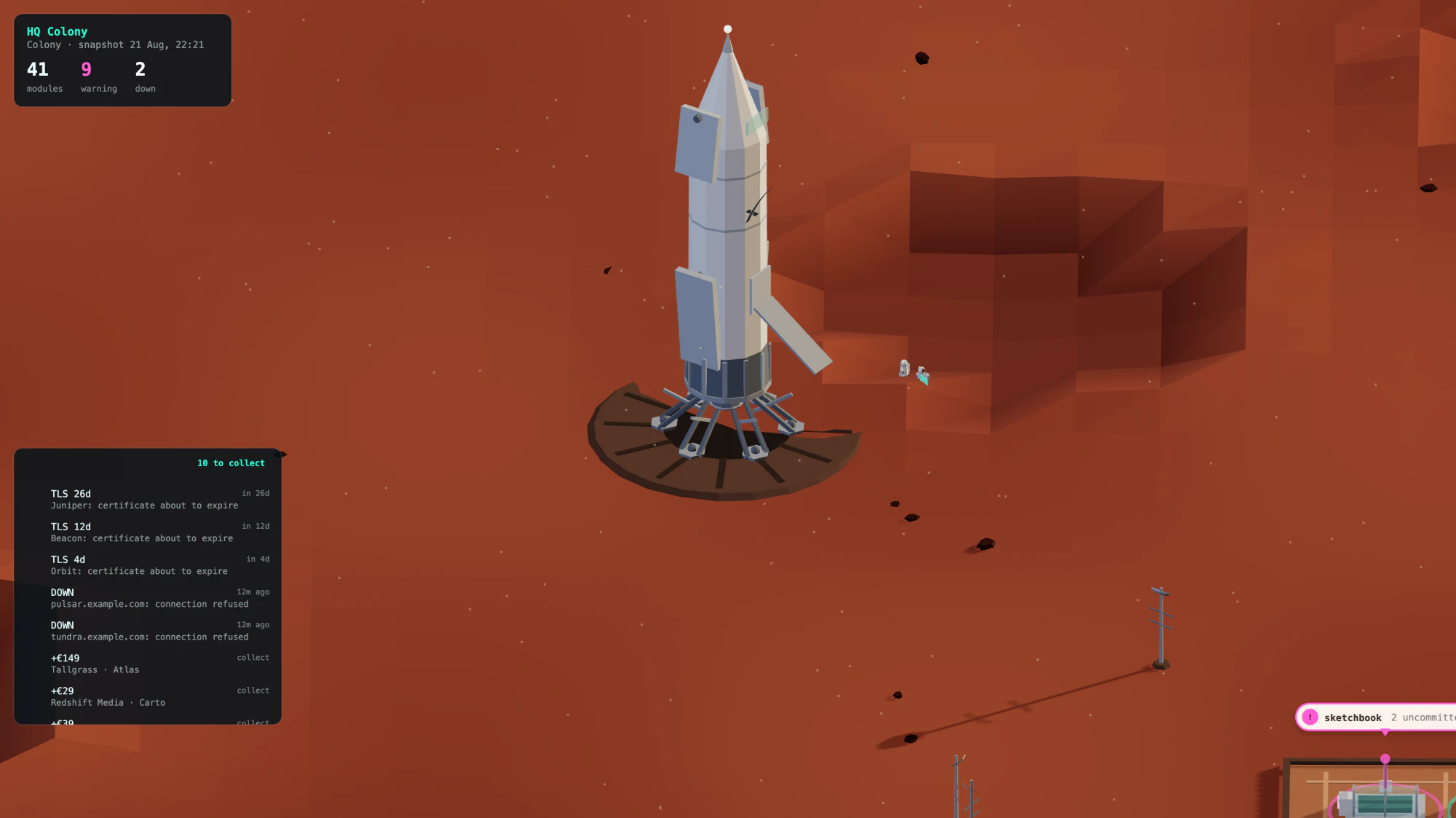

A cargo ship stands out past the base on its own sintered pad, thirty-three metres of it — six legs in tripods, engine bells under the skirt, scorch thrown radially across the ground. It's the one thing in the valley that carries no data at all, and it earns its place by doing the job nothing else can: giving everything else a size. Without it a habitat dome is an abstract shape. Next to it, it's a building you could walk into.

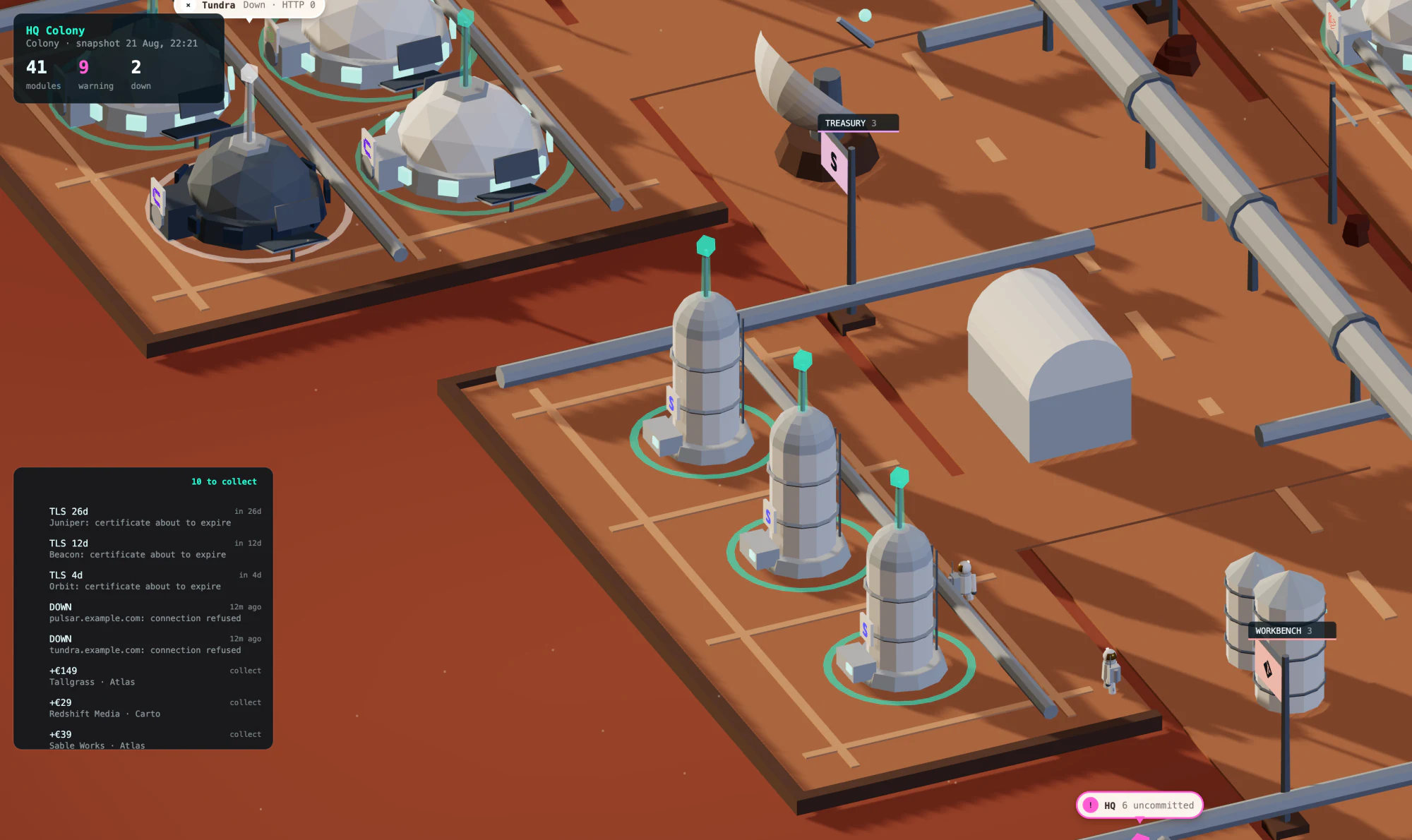

A charge lands and the ice extractor it belongs to puts up a tag with the amount. Click it and the colony throws a small party — a burst of colour over the module — and the charge is marked collected and never asks again. A refund is not a sale, so it never becomes a pin: it goes into the ledger, where accounting belongs, and stays out of the sky, where alarms belong.
( Under the hood )
Production every 60 s, local repos every 5 min, GitHub every 15, Stripe every hour, certificates every twelve. Those numbers were measured, not guessed: the limit that actually binds on Stripe isn't the hundred requests a second, it's the monthly read allowance. Polling every five minutes burned 432 % of it.
Every building is baked down to vertex colours and merged by material, keeping only the parts that have to move or change state. A hundred modules land in comfortable territory — and the mining crew, the rover and the drones animate on top without the frame budget noticing.
No key lives in the repository. GitHub goes through the gh session you already have, Stripe through the CLI's keychain, production through real HTTP requests to your own domains. The snapshot is gitignored on purpose: it holds local paths, identities and revenue.
